DIGITAL MICROSCOPES AND SOFTWARE

Forensic Tools have proudly partnered with Dino-Lite to distribute their extensive range of handheld Digital Microscopes. Dino-Lite has a digital handheld microscope to suite every need. Forensic Tools recommend the Dino-Lite 5MP Edge AM7115MZT.

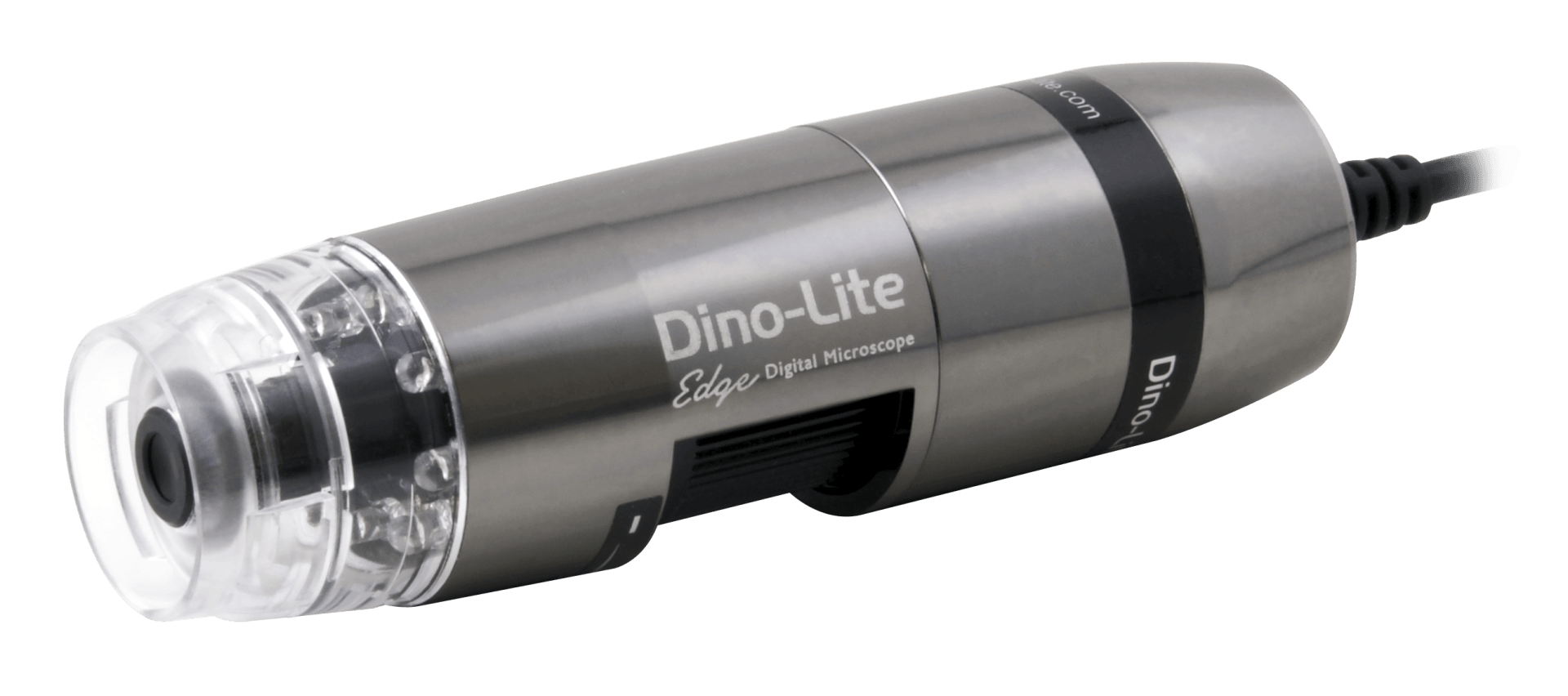

The Dino-Lite 5MP Edge AM7115MZT delivers unmatched image at wide magnification range from 20X to 220X with highest illumination flexibility. It combines the latest optics with an advanced 5MP sensor, as well as a low-loss MJPEG compression, and also allows displaying crisp and fluent image with low power consumption. The innovative Flexible LED Control (FLC) enables partial illumination to enhance edge contrast and provides intensity adjustability for better adaptability. Together with adjustable polarizer, interchangeable front caps, rugged metal housing, the AM7115MZT is made to be the tool of choice for wide range of applications.

Overview

  • High optical resolution: The superior optics adopted in the Edge series reveals the finest details, answering the needs of the most demanding microscopy applications.
  • 5.0 Megapixels: Thanks to the low loss MJPEG compression, the advanced CMOS image sensor allows to transmit fluid and crisp image with resolution up to 2592x1944.
  • Flexible LED Control (FLC): Tasking with software, the FLC maximizes illumination flexibility by offering independent on/off control to the four LED quadrants in addition to the 6-levels intensity adjustment capability.

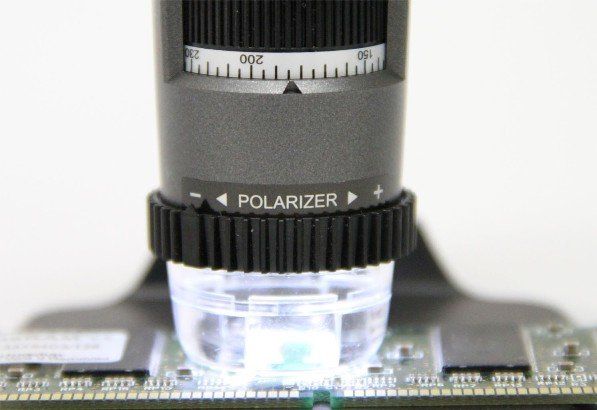

  • Adjustable polarizer: The built-in adjustable polarizer allows to freely remove the unwanted reflection or glare from the object surface for a better contrast.
  • Scroll Lock: The scroll lock ensures the focus knob staying at the desired focus or magnification position without worry of unintentional movement.
  •  Robust housing: The metal housing made of aluminum alloy offers compelling advantages of protection and endurance.
  • Interchangeable caps: The interchangeable caps provide adaptability to numerous applications with alternative lighting or object interface, such as but not limited to diffused-light, ring-light, and coaxial-light etc.

RK-05 Stand

Observing the object or specimen from a different perspective, the Dino-Lite RK-05 stand provides a multi-angle view with its 30 degrees inclinable pole feature. This is a light-weight, ultra-portable stand with a one-step assemble/disassemble design.

Specifications

  • Product Resolution:  5M pixels (2592x1944)
  • Magnification: 20x~220x
  • Frame Rate: 10fps in 5MP/3MP/2MP, MJPEG, 25fps in 1.3MP, MJPEG, 30fps in VGA, MJPEG
  • Lighting: 8 white LEDs
  • Calibration Function:  Yes
  • Measurement Function:  Yes
  • Unit Dimension: 10.5cm (H) x 3.2cm (D)
  • Unit Weight: 135g
